My new guitar is a Cordoba C12!

Hi there fellow guitar slingers!

Last week I went live on the NBN guitar channel to showcase my new guitar - a Cordoba C12. I must say that I’m absolutely stoked with my new guitar’s sound & playability. I love the Spruce top too!

Here are some of the features:

• European Spruce top

• Indian rosewood back & sides

• Mahogany neck with an adjustable two-way truss rod

• Flamed Maple centre wedge (separates the two pieces that comprise the back of the guitar)

• Lattice bracing

• Elevated fretboard

• Cordoba Gold tuners with Ebony buttons

• Humidified Archtop hardshell case

Here are a few pics for you to enjoy!

Cordoba C12 classical guitar Spruce soundboard

Cordoba C12 classical guitar back

I purchased this guitar from my luthier friend Ramsay Phillips based in Auckland, New Zealand. He was selling it on behalf of his friend that works at the Rockshop - a well-known musical instrument chain here in Aotearoa. It was originally purchased for the store but for some reason it was put into storage and never offered for sale, which means I am the first official owner.

Cordoba C12 classical guitar tuners

In this video I played the C12 for about two hours whilst asking others which guitars they play. Amazingly, I discovered that so many of my subscribers play Cordobas!

Anyway, I’ve talked enough. Please check out the livestream and stay tuned!

Let your fingers fly!

Josh

Modern Classical Guitar Design Part 5: Lattice Bracing

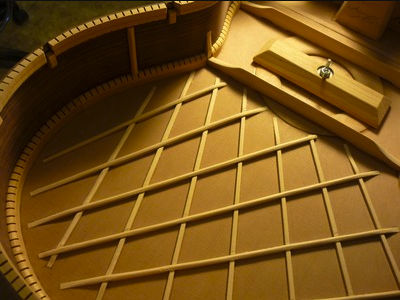

A view of a lattice bracing system (http://www.guitarras-fogas.com)

Introduction

Up until a couple of decades ago most if not all classical guitars were constructed using the fan bracing method or variations thereof. Prior to that 'ladder bracing' was used in the smaller predecessors of the modern guitar. Once Antonio de Torres arrived on the scene the style of bracing for the soundboard changed with his radical new concept of braces splaying out in the shape of a fan. This style of bracing has been used successfully for almost two centuries and it is still probably the most common type of bracing used in classical guitar design today. However, in the 80s master Australian luthier Greg Smallman revolutionised the bracing system for the guitar soundboard by introducing a system known as 'lattice bracing'.

The glorious phenomenon with the guitar is that it is still evolving. It is a work in progress and it seems as though the rate of change and experimentation with its fundamental design is an ever-changing thing. There is probably no other instrument on earth that is made with such wildly varying designs, shapes, patterns, styles, sizes, materials and so on. Guitar luthiers seem like a wild bunch always pushing the boundaries of guitar style, design, and most importantly - sound.

What does a classical guitar fan brace look like?

In the picture below you can see a wonderful example of fan bracing used to support the top. The braces all 'fan' out towards the edges of the soundboard hence the term 'fan bracing'. There are several well-known variations to the basic Torres design:

• Amadeo
• Bouchet (pictured below)
• Cordoba
• Esteso
• Panormo
• Tatay
• Yacobi

An example of traditional 'Bouchet' fan bracing taken from Randy Reynold's website.

These innovations do have an impact on the tones and frequencies that are projected and amplified by the guitar itself. The traditional 'ladder bracing' ran at a 90degree angle to the soundboard grain produce a thinner, treble biased sound somewhat similar to that of the lute. The Torres 'fan bracing' combined with a larger body and thinner top produced warm instruments with an enhanced bass response and projection.

Enter Greg Smallman - Bearded luthier extraordinaire with his revolutionary 'lattice bracing' innovation. Three decades ago Australian Greg Smallman irreversibly changed the design of classical guitar bracing by introducing a system of overlapping struts all joined together using a combination of carbon fibre and balsa wood in a 'lattice' framework joined to a top that is much thinner than tops using the conventional Torres bracing. The result is a guitar with extraordinary clarity, even and consistent frequency response & fuller tone.

Pros & Cons of a lattice-braced guitar

Pros:

- Loud. An increase in volume offers the guitarist more dynamic possibilities

- Sustain for days

Cons:

- Non-traditional tone (sometimes described as nasal)

- Too Lound (is there even such a thing?)

Famous players that play lattice braced guitars

• John Williams
• Xuefei Yang
• Carlos Bonnel
• Timothy Kain
• Stepan Rak
• David Tannenbaum

Xuefei yang playing one of her greg smallman guitars in concert.

A wonderful example of the power of a lattice braced guitar can be heard in John Williams' documentary 'The Seville Concert'. John visits Greg Smallman at his home in NSW, Australia. During their meeting John plays a snippet of the third movement of the 'Concerto in D RV230' by Antonio Vivaldi after they've visited Smallman's workshop. The power and clarity displayed by that instrument during that wee snippet is undeniable.

In conclusion

At the end of the day the most important thing is how the guitar makes you feel. Choose a guitar that suits you not because it has some cutting-edge design features or because of its brand.

Check out my other articles in the

'Modern Classical Guitar Design Series':

Part 8: Fanned Frets

Part 7: Arched back

Part 6: Double Tops

Part 4: Armrest

Part 3: Soundport

Part 2: Indented Cutaway

Part 1: Elevated Fingerboard

Let your fingers fly!
